Human CXCL16 ELISA Kit EZ-Set™ (DIY Antibody Pairs)

EZ-Set™ ELISA Kits (Ab Pairs)

27579 MW

C-X-C motif chemokine 16

Chemokine (C-X-C motif) ligand 16 (CXCL16) is a small cytokine belonging to the CXC chemokine family. Larger than other chemokines (with 254 amino acids), CXCL16 is composed of a CXC chemokine domain, a mucin-like stalk, a transmembrane domain and a cytoplasmic tail containing a potential tyrosine phosphorylation site that may bind SH2. These are unusual features for a chemokine, and allow CXCL16 to be expressed as a cell surface bound molecule, as well as a soluble chemokine. CXCL16 is produced by dendritic cells found in the T cell zones of lymphoid organs, and by cells found in the red pulp of the spleen. Cells that bind and migrate in response to CXCL16 include several subsets of T cells, and natural killer T (NKT) cells. CXCL16 interacts with the chemokine receptorCXCR6, also known as Bonzo. The novel CXC-chemokine ligand 16 (CXCL16) functions as transmembrane adhesion molecule on the surface of APCs and as a soluble chemoattractant for activated T cells. Expression of CXCL16 is induced by the inflammatory cytokines IFN-gamma and TNF-alpha. The gene for human CXCL16 is located on chromosome 17.

Chemokines, Immunology, Innate Immunity, Macrophage/Inflammation

Acts as a scavenger receptor on macrophages, which specifically binds to OxLDL (oxidized low density lipoprotein), suggesting that it may be involved in pathophysiology such as atherogenesis (By similarity). Induces a strong chemotactic response. Induces calcium mobilization. Binds to CXCR6/Bonzo.

Human CXCL16 ELISA Kit EZ-Set™ (DIY Antibody Pairs) (antibody pairs and standards for assay development). Quantitate Human CXCL16 in cell culture supernatants, cell lysates, tissue homogenates, serum and plasma (heparin, EDTA).

cell culture supernatants, cell lysates, tissue homogenates, serum and plasma (heparin, EDTA).

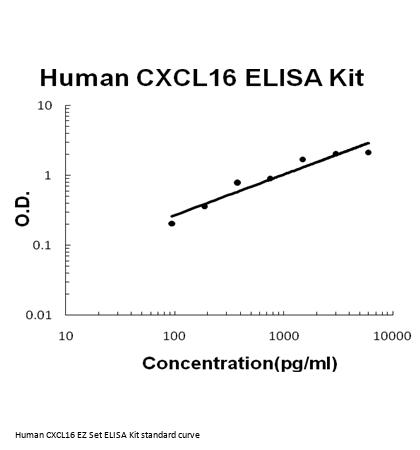

Concentration (pg/ml) | 0 | 93.7 | 187.5 | 375 | 750 | 1500 | 3000 | 6000
O.D. | 0.055 | 0.204 | 0.358 | 0.787 | 0.906 | 1.686 | 2.029 | 2.12

Catalog number | Description | Quantity | Storage of opened/reconstituted material
EZ0741-CA | Rabbit anti- human CXCL16 polyclonal antibody (Capture Antibody) | 500 µ l, 0.4 mg/mL
(recommended dilution 1:100)
Store undiluted at 4°C for 1 month or at -20°C for 3 months provided this is within the expiration date of the kit.
EZ0741-DA | Biotinylated goat anti- human CXCL16 polyclonal antibody (Detection Antibody) | 500 µ l, 5 µ g/mL
(recommended dilution 1:100)
AR1103 | Avidin-Biotin-Peroxidase Complex (ABC) | 500 µ l (recommended dilution 1:100)
EK0741-ST | Lyophilized recombinant human CXCL16 standard | 10 ng/tubex3
Discard the standard stock solution after 12 hours at 4°C. May be stored at -20°C for 48 hours provided this is within the
expiration date of the kit.

1. Microplate reader in standard size.
2. Automated plate washer.
3. Incubator.
4. Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
5. Clean tubes and Eppendorf tubes.
6. 96 well microplate (Cat# AR1100)
7. Plate Sealers.
8. Capture Antibody Diluent: PBS.
9. Reagent Diluent: 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered.
10. Substrate Solution: Tetramethylbenzidine (Cat# AR1104)
11. Stop Solution: 2 N H2SO4 (Cat# AR1105)
12. Wash Buffer (PBS and PBS-T). Recipes:
PBS: 8g NaCl, 0.2g KCl, 1.15g Na2HPO4, 0.2g KH2PO4, adjust the total volume to 1 L with distilled water, pH 7.2-7.4, 0.2 µm filtered.
PBS-T: 0.1% Tween® 20 in PBS, pH 7.2-7.4.
*Item 6 – 12 are included in the EZ Set Accessory Kit (EZA001)
