SureLight™ PE-665 (Cyanine 5.0)

SureLight™ PE-665 (Cyanine 5.0)

Item no.	COL-D14-000-5mg
Manufacturer	Columbia Biosciences
Amount	5 mg
Category	Oncology Reagents & Chemicals Staining & Dyes Fluorescent Reagents By Organ Pancreatic Cancer
Type	Fluorescent dyes and probes
Format	Liquid
Applications	WB, FC, ELISA
Specific against	other
Conjugate/Tag	PE
ECLASS 10.1	30196090
ECLASS 11.0	30196090
UNSPSC	12000000
Available
Manufacturer - Conjugate / Tag	SureLight PE-665
Description	Many applications and instruments were developed specifically for PE-665 (PE Cyanine 5.0). It is commonly used in immunoassays such as FACS, flow cytometry, multimer/tetramer applications. With new instrumentation available, PE-665 is also well suited for immunohistochemistry (IHC) and Western blot applications. SureLight™ PE-665 (PE Cyanine 5.0) Labeling Protocol: Click here to be redirected to a well-documented conjugation protocol - http://www.drmr.com/abcon/C5P.html REF: Hardy, RR: Purification and coupling of fluorescent proteins for use in flow cytometry. In: Handbook of Experimental Immunology, 4th ed. DM Weir, LA Herzenberg, C Blackwell, and LA Herzenberg, editors. Blackwell Scientific Publications, Boston, 1986, pp. 31.1-31.12.

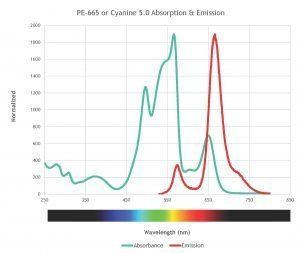

Excitation max	488nm
Emission max	665nm
Form / Storage	Supplied as liquid. Upon receipt, store at 2-8C. DO NOT FREEZE.
Stability	Product should be stored at 2–8C in the dark.
Technical Info	Structural Characteristics R-phycoerythrin is predominantly produced by red algae. The protein is made up of at least three different subunits and varies according to the species of algae that produces it. The subunit structure of the most common R-PE is (αβ)6γ. The α subunit has two phycoerythrobilins (PEB), the β subunit has 2 or 3 PEBs and one phycourobilin (PUB), while the different gamma subunits are reported to have 3 PEB and 2 PUB (γ1) or 1 or 2 PEB and 1 PUB (γ2). The molecular weight of R-PE is 250, 000 Daltons. SureLight™ PE-665 is a tandem fluorophore comprising R-Phycoerythin and a red-shifted cyanine dye. Absorption maximum: 565 nm Additional Absorption peak: 498 nm

Note: The presented information and documents (Manual, Product Datasheet, Safety Datasheet and Certificate of Analysis) correspond to our latest update and should serve for orientational purpose only. We do not guarantee the topicality. We would kindly ask you to make a request for specific requirements, if necessary.

All products are intended for research use only (RUO). Not for human, veterinary or therapeutic use.

Request Data Sheet

COL-D14-000-5mg-datasheet.pdf

COL-D14-000-5mg-safety-datasheet.pdf
