Comparison

Human Glycosylation Array 493

Manufacturer Raybiotech
Category
Type Array
Specific against other
Amount 4 Sample Kit
Item no. GAH-GCM-493-4
eClass 6.1 32161000
eClass 9.0 32161000
Available
Product Features
  • High density screening
  • High sensitivity and specificity
  • Low sample volume (20-100 µ l per array)
  • Large dynamic range of detection
  • Compatible with most sample types
  • Accurate and reproducible
Introduction
With the Human Glycosylation Array 493, researchers can now efficiently obtain glycosylation profiles in their samples. The glycosylation profiles of 493 human proteins can be simultaneously detected, including, but not limited to, cytokines, chemokines, adipokines, growth factors, angiogenic factors, proteases, soluble receptors, soluble adhesion molecules in cell culture supernatants, serum, plasma and other samples types.

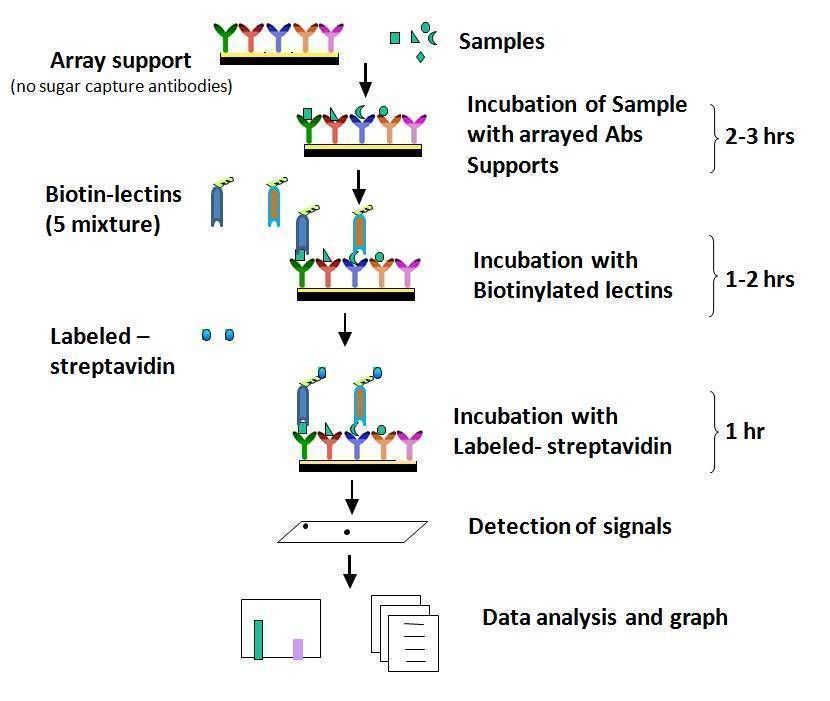

Capture antibodies are printed onto glass slides and the glycans on these capture antibodies are removed. The glass slide arrays come pre-blocked and are ready to be incubated with samples. After incubation with samples and washing to remove unbound proteins, five unique biotin-labeled lectins are incubated with the array to allow binding to the glycans from captured target proteins. Streptavidin-conjugated fluorescent dye (Cy3 equivalent) is then added to the array. Finally, the glass slide is dried and laser fluorescence scanning is used to visualize the signals. These signals are then compared to the array map to identify glycosylated proteins present in the samples.

Note: The presented information and documents (Manual, Product Datasheet, Safety Datasheet and Certificate of Analysis) correspond to our latest update and should serve for orientational purpose only. We do not guarantee the topicality. We would kindly ask you to make a request for specific requirements, if necessary.

All products are intended for research use only (RUO). Not for human, veterinary or therapeutic use.
